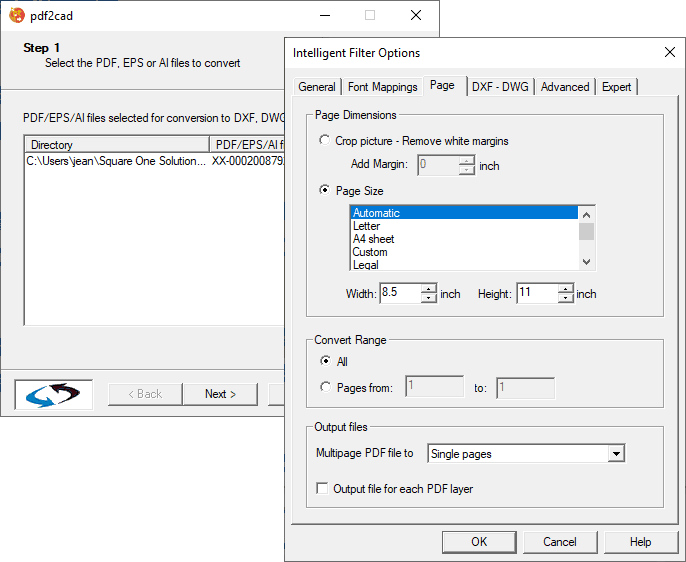

pdf2cad lets you transform vector PDF files into editable CAD drawings such as DXF and DWG. In seconds you extract an accurate drawing which can be easily modified in popular engineering programs such as AutoCAD, TurboCAD and MicroStation. Output formats include DWG, DXF and HPGL. pdf2cad extracts editable CAD entities, layers, objects and text from any computer-generated PDF file while images from scanned PDF files are placed on a non-editable tracing layer.

pdf2cad Features

  • Convert PDF files into standard CAD interchange formats, DWG, DXF and HPGL.
  • Convert one file or multiple files using the built in batch mode.

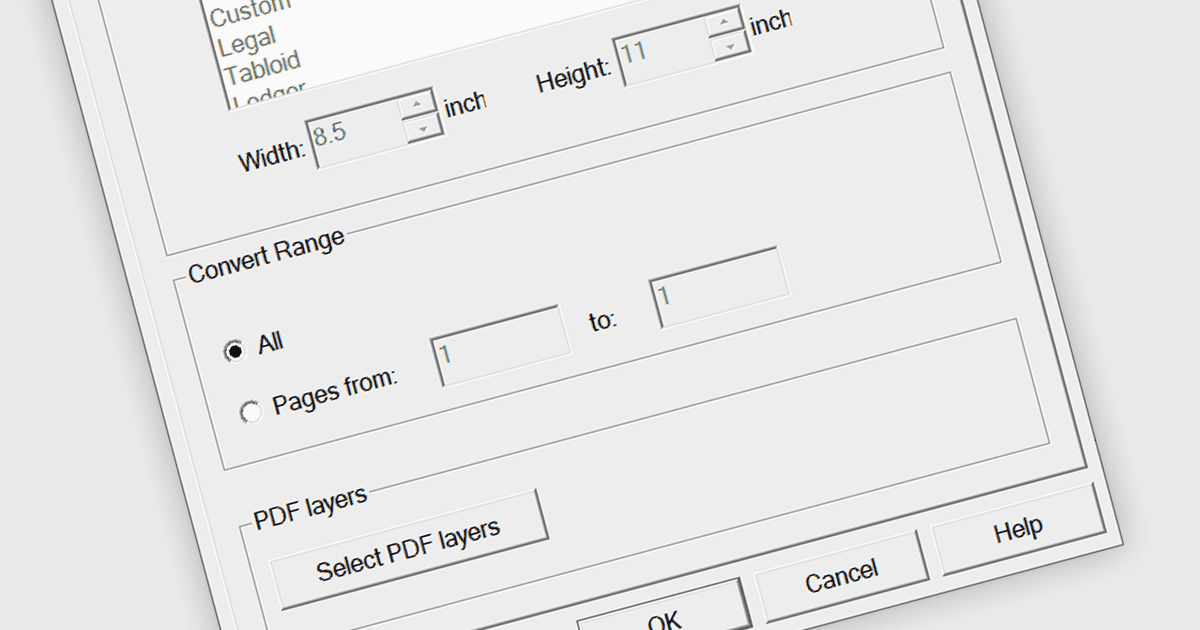

  • Convert all pages or specify a page range.
  • Intelligent object recognition.
  • Combines characters to form editable words and lines of text.
  • Cropping.
  • Add white space to page.
  • Rotate output by any degree.
  • Option to ignore text, images or paths during conversion.
  • Map fonts for high fidelity file match.
  • Scale page to match original dimensions of...


pdf2cad 11.2019
pdf2cad 11.2019
pdf2cad v11
pdf2cad v11

価格:¥ 35,200 (税抜)〜

One software license is required per User on one machine。


今すぐ Visual Integrity ライセンススペシャリストとライブ チャット

Visual Integrity
公式認定ディストリビューターとして Visual Integrity 社の正式ライセンスをお客様に直接お届けいたします。
Operating System for Deployment
  • Windows 10
  • Windows 8.1
  • Windows 8
  • Windows 7
  • Windows Vista
  • Mac OS X
